SL-0004

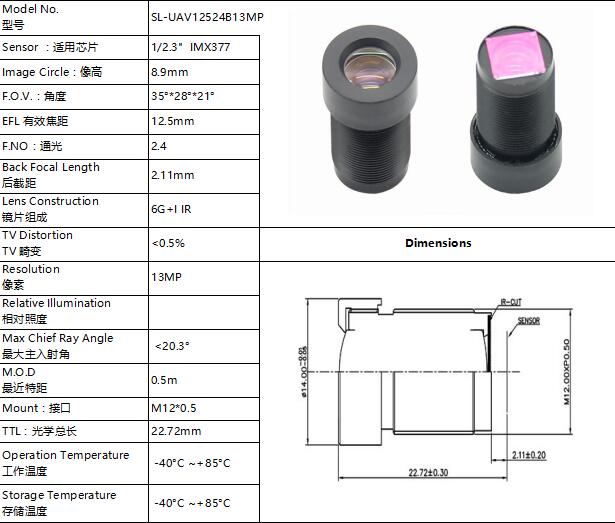

SL-0004 IMX377 IMX577/IMX477 HFOV 28 degree M12*0.5 13MP UAV LENS EFL=12.5mm IR-Cut filter lens M12 Mount Board F2.4 Format 1/2.3" CCTV Camera Lens
| Model No. 型号 |
SL-UAV12524B13MP |
| Sensor ：适用芯片 | 1/2.3" IMX377 |
| Image Circle：像高 | 8.9mm |
| F.O.V.：角度 | 35°*28°*21° |
| EFL 有效焦距 | 12.5mm |
| F.NO：通光 | 2.4 |
| Back Focal Length 后截距 |
2.11mm |
| Lens Construction 镜片组成 |
6G+I IR |
| TV Distortion TV 畸变 |
<0.5% |
| Resolution 像素 |
13MP |
| Relative Illumination 相对照度 |
|
| Max Chief Ray Angle 最大主入射角 |
<20.3° |
| M.O.D 最近特距 |
0.5m |
| Mount：接口 | M12*0.5 |
| TTL：光学总长 | 22.72mm |
| Operation Temperature 工作温度 |
-40°C ~+85°C |
| Storage Temperature 存储温度 |
-40°C ~+85°C |
